Description
A text description of the key advantages and features of the trailer goes here. Focus on the Benefits of operation to the company using the Trailor. A text description of the key advantages and features of the trailer goes here. Focus on the Benefits of operation to the company using the Trailor. A text description of the key advantages and features of the trailer goes here. Focus on the Benefits of operation to the company using the Trailor. A text description of the key advantages and features of the trailer goes here. Focus on the Benefits of operation to the company using the Trailor.

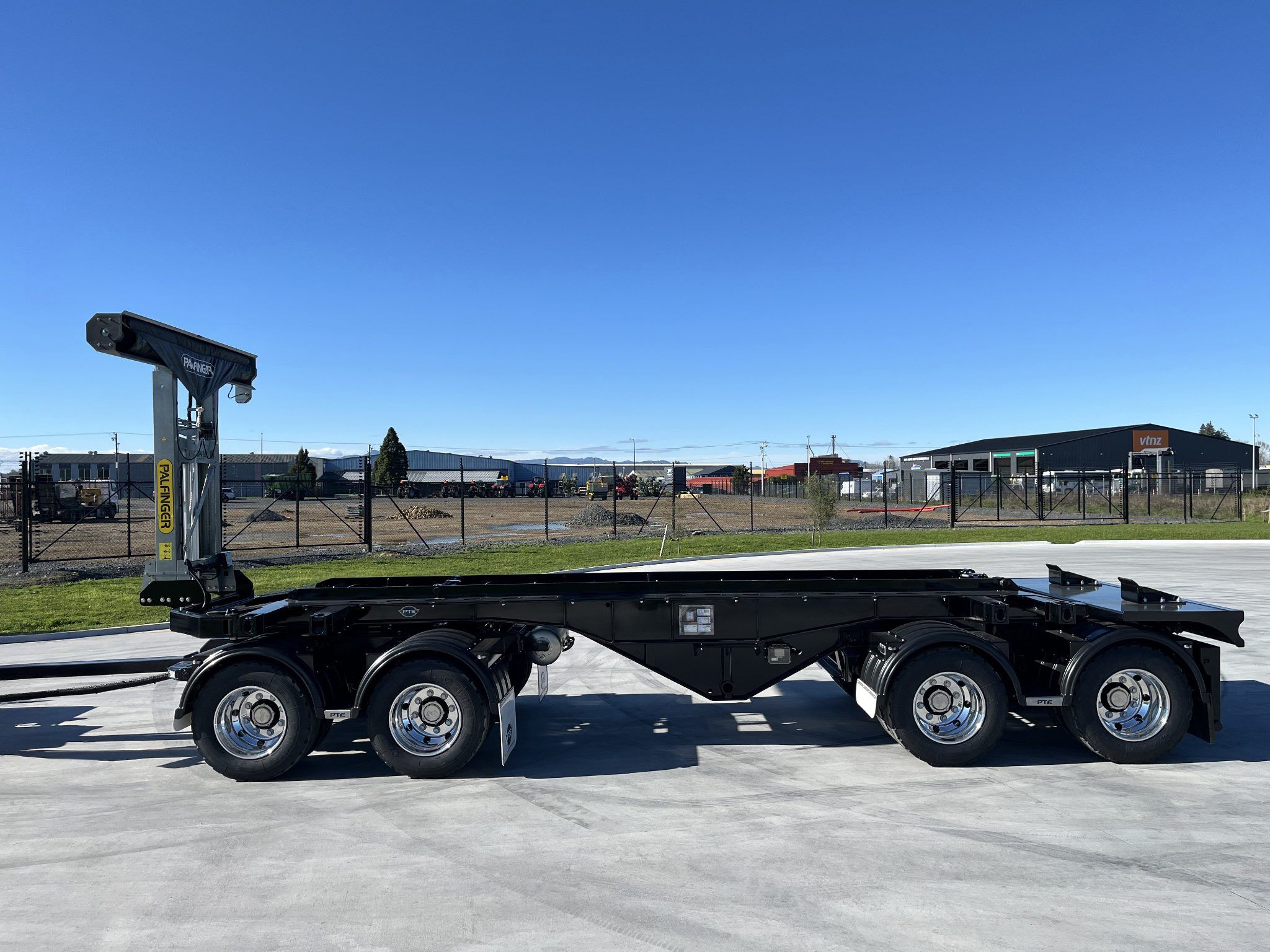

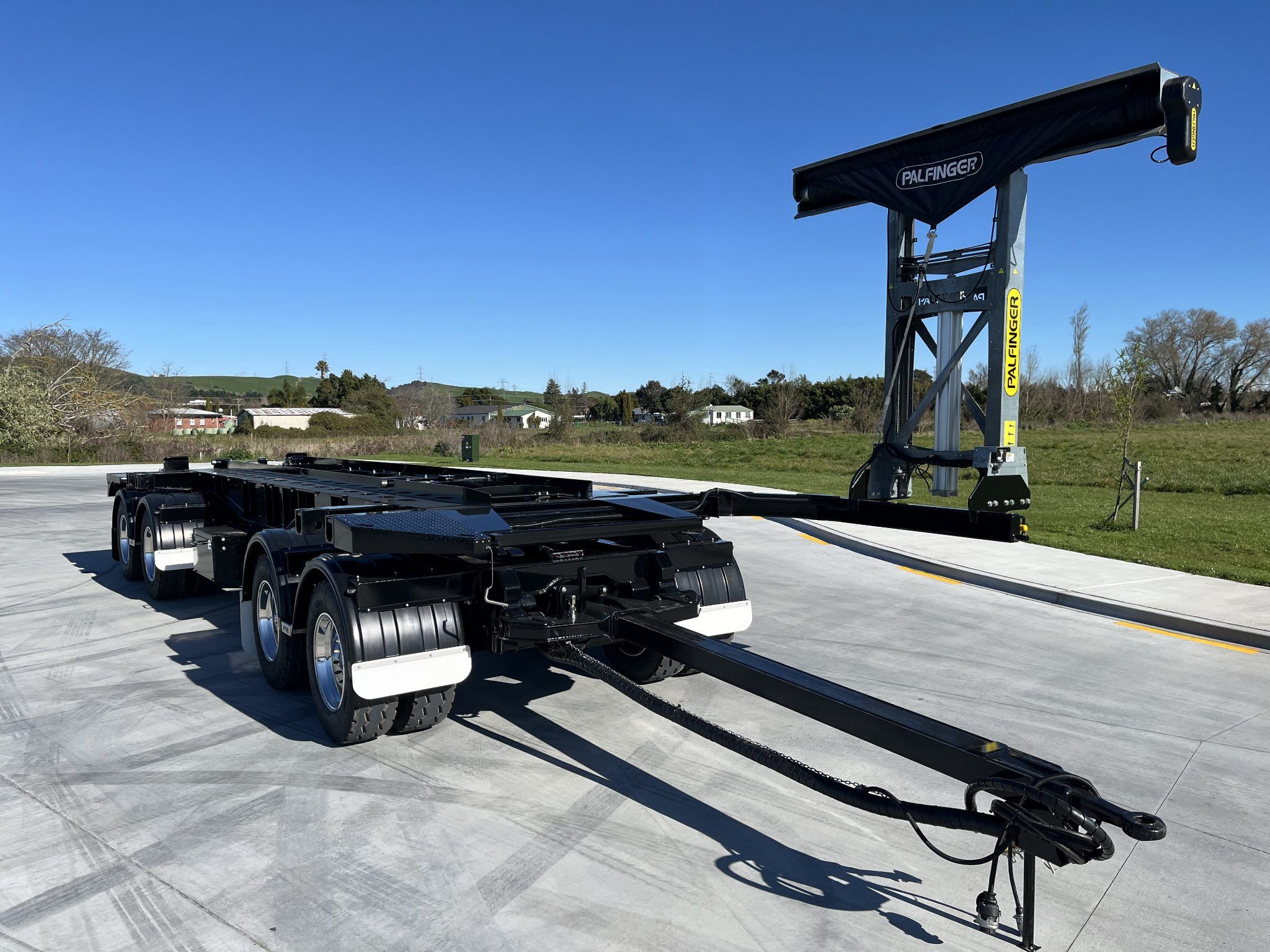

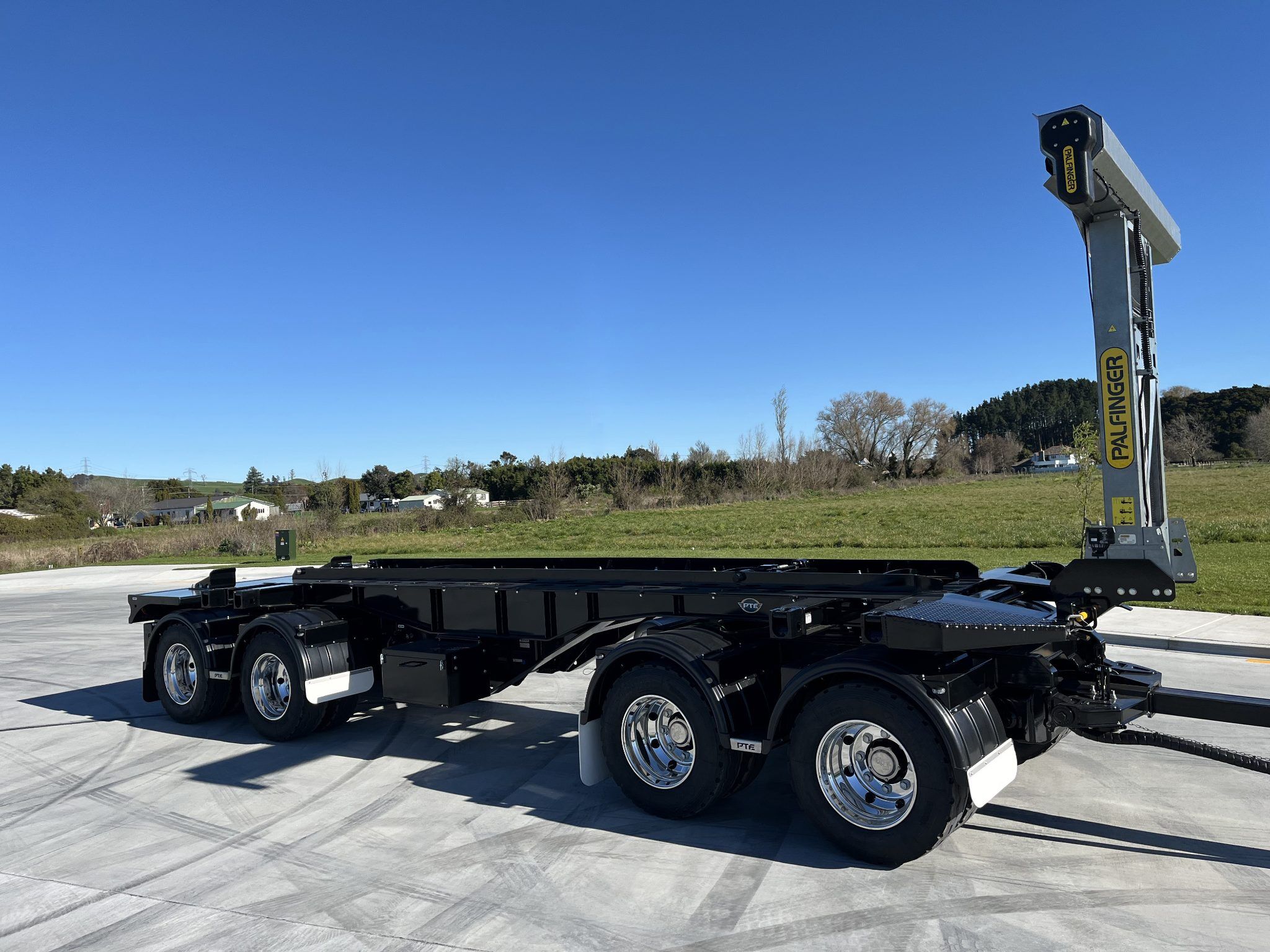

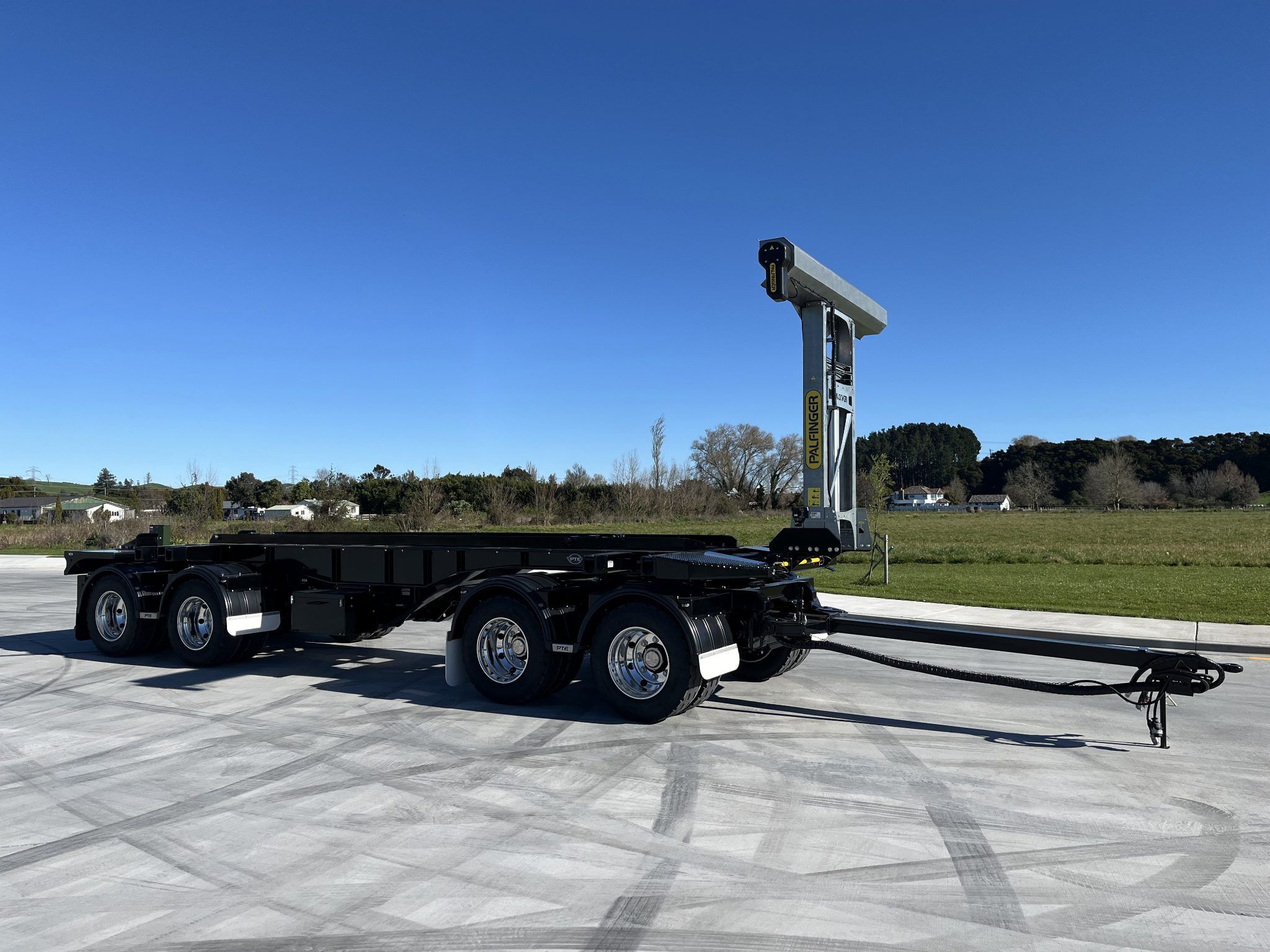

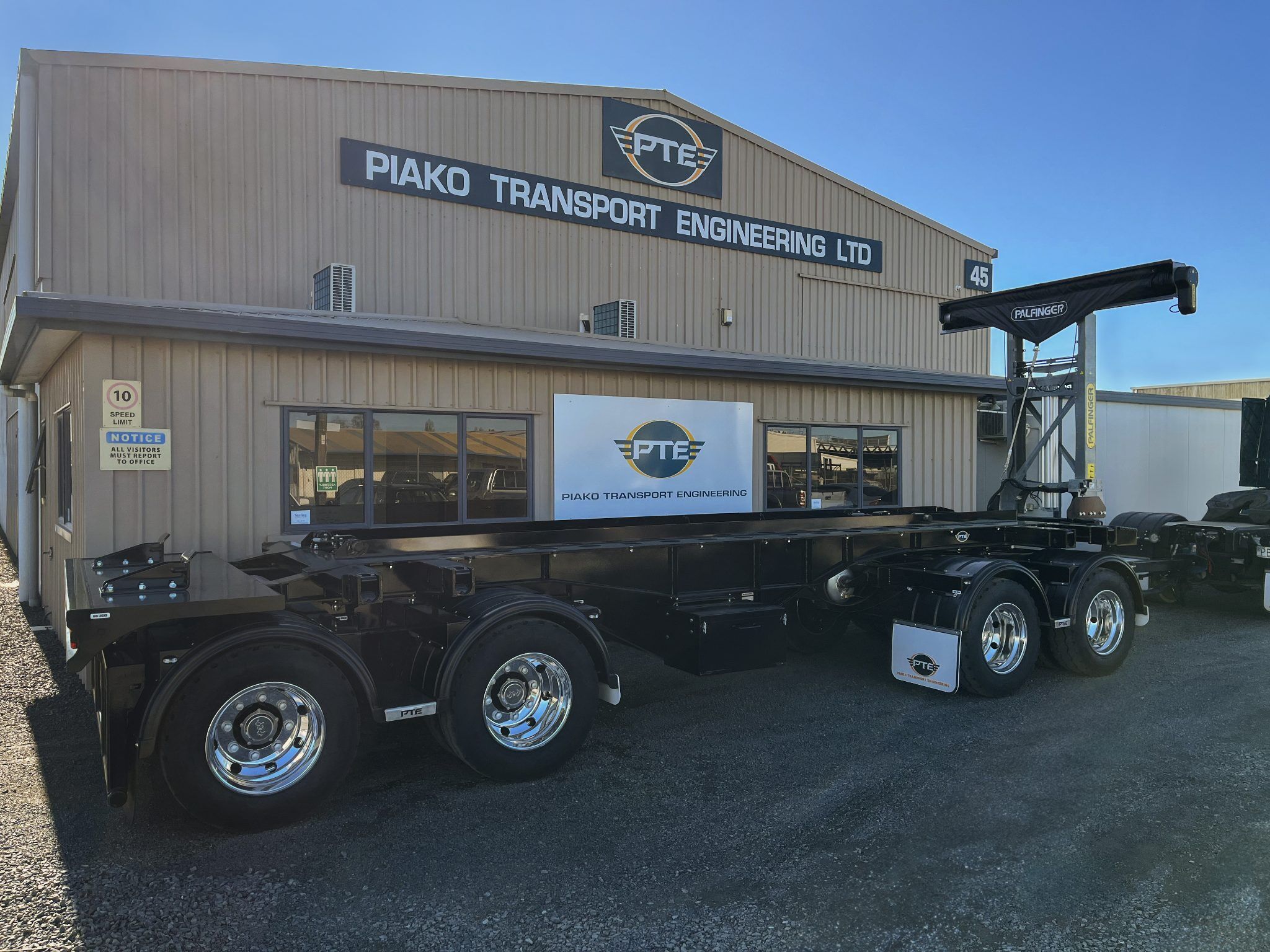

SPECIFICATIONS
- GVM: 32 Tonne
- Overall Length: 11060mm
- Deck Length: 7700mm
- Forward Length: 4235mm
- Rear Overhang: 1430mm
- Axle Spacing: 1250mm front & 1300mm rear
- Width: 2500mm
- Load Anchorages: 4 Per side @ 12T each & Bin Locks at 24T
- Deck: 6mm HT wear plate
- Axles: ROR 19.5 Disc Axles (x4)
- Suspension: SL9 Integrated air suspension
- Brakes: Knorr Bremse EBS
- Wheels: Aluminium with Kiwi 265 65 19.5 tyres
- Mudguards: Rhino plastic guards
- Lights: Sealed looms with Hella LED

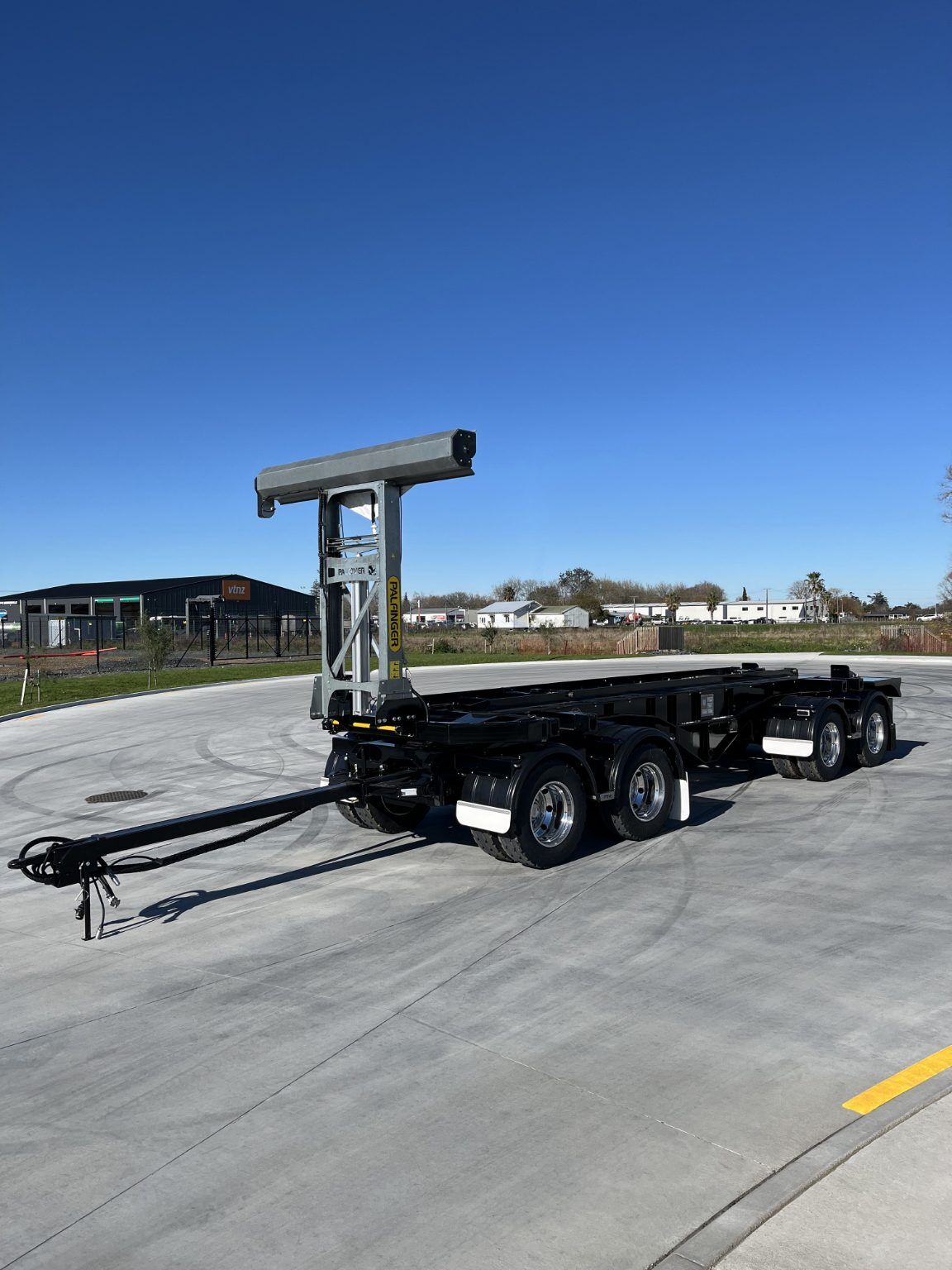

- Drawbar: Sliding 2865mm long with 50mm weld in tow eye

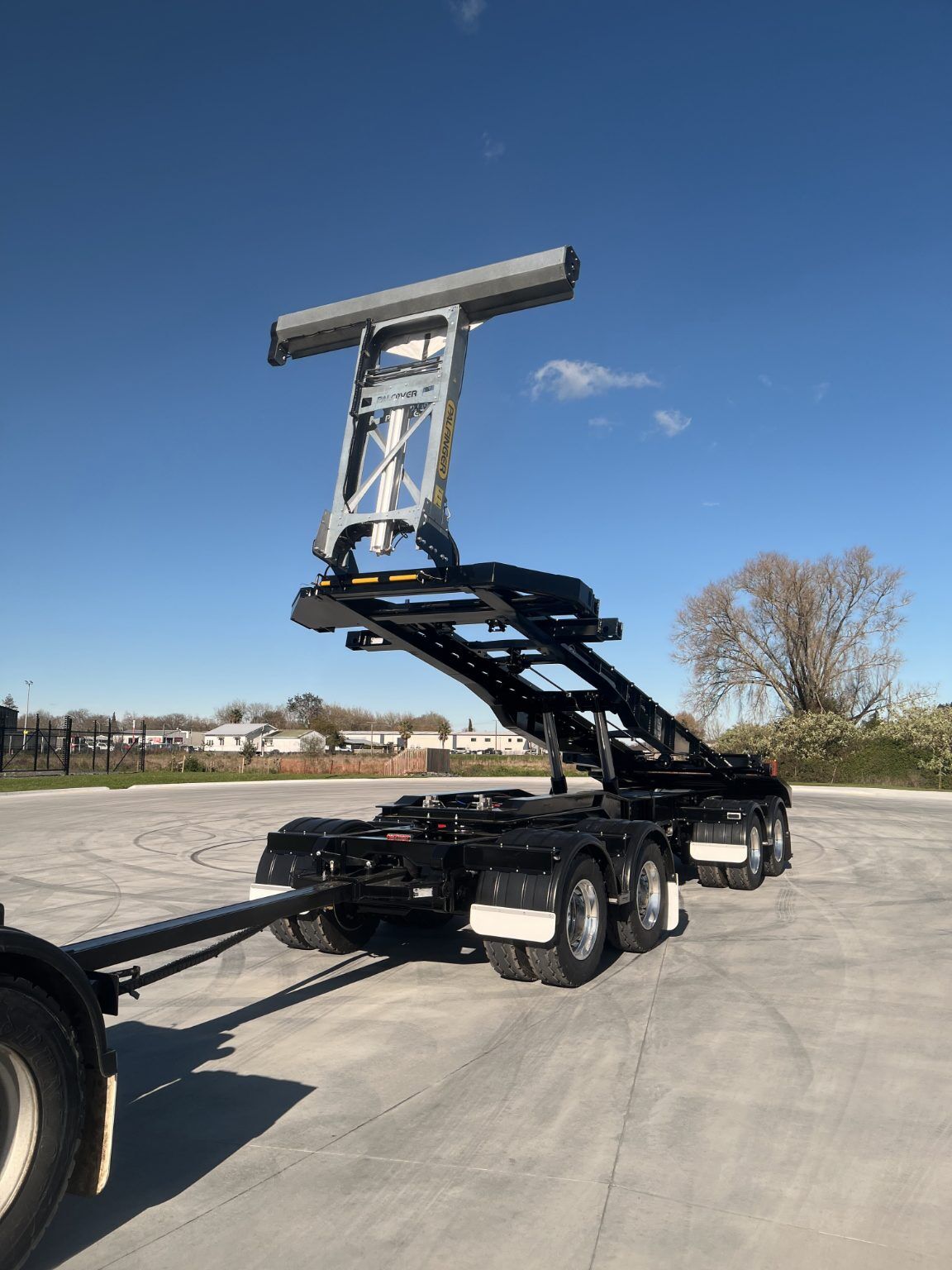

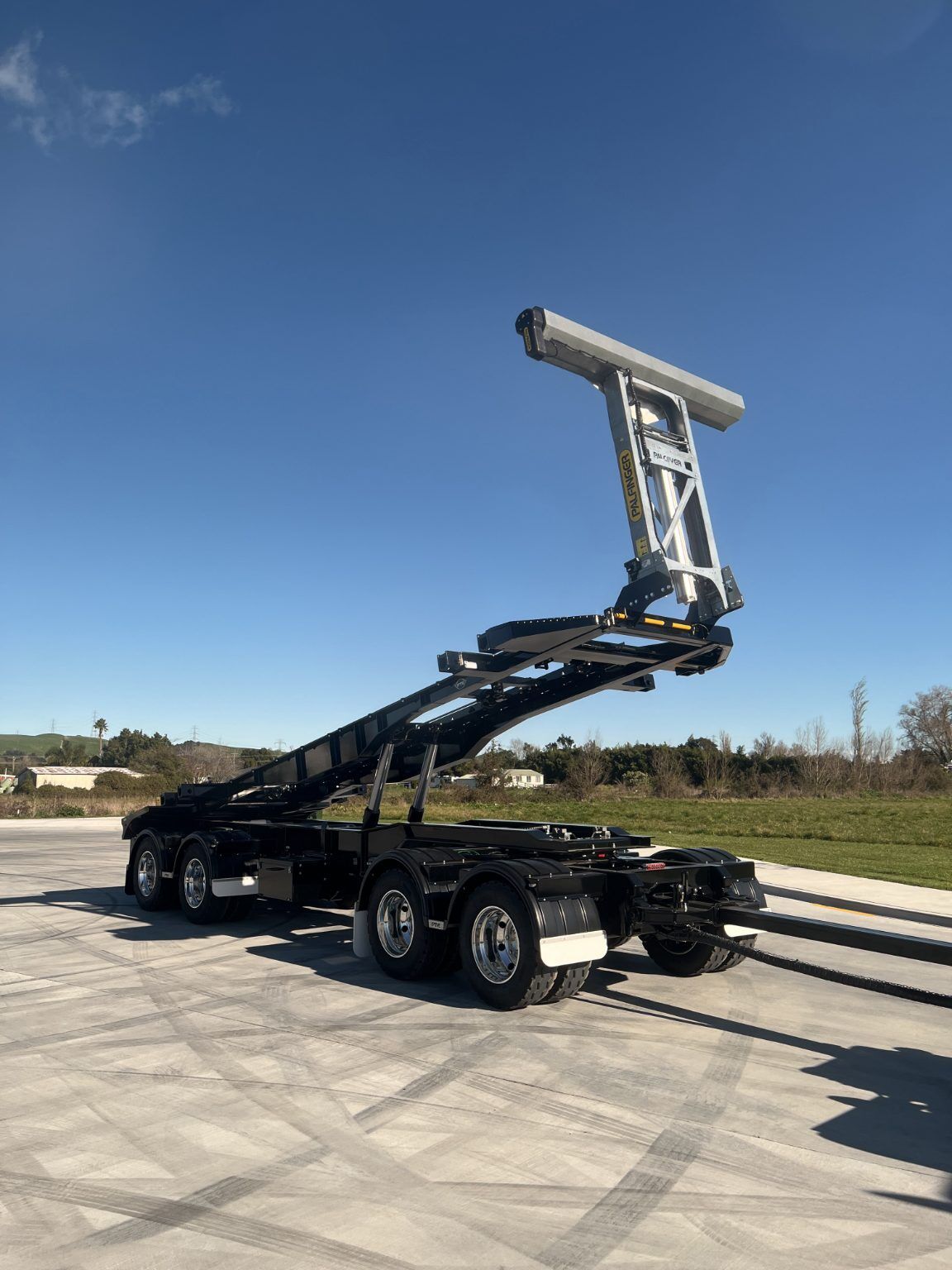

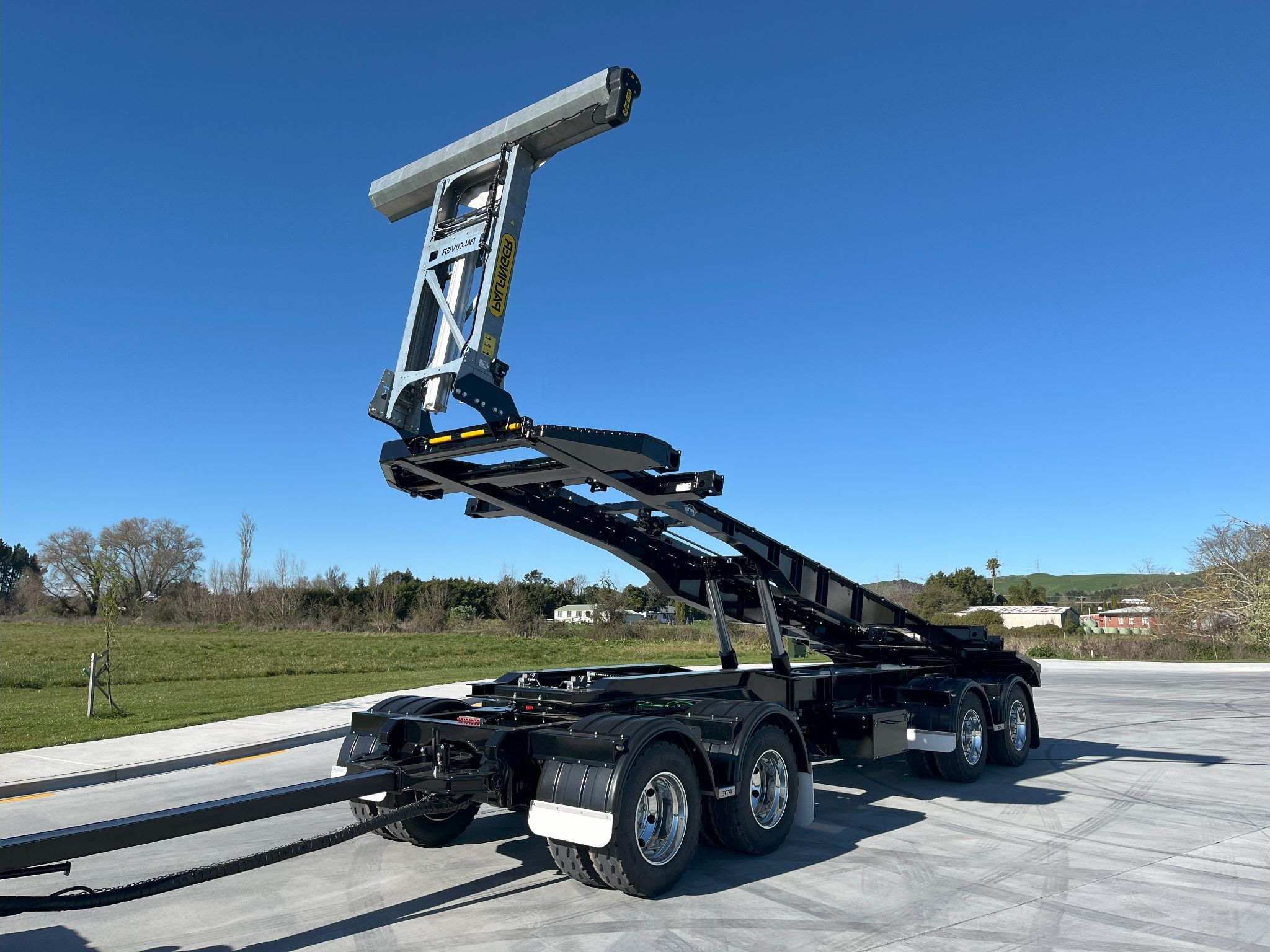

- Hydraulics: Mega Pacific Underbody Hoists powered from Truck PTO
- Toolboxes: 1 x Under deck and 1 x chain tray in deck
- Options: Palcover with opening arm, Wabco brakes, SAF Suspension & axles, 5 axle HPMV builds
