Description
A solid spec simple trailer with an 8000mm deck (6900mm forward length), 2.5m wide, and 50mm H3 treated pine deck. Fitted with 17 load anchorages per side rated to 18T.
Running gear includes ROR 17.5 drum axles x3 on 1260mm spacing, Weweler air suspension, steel wheels with Kiwi 215/75R17.5 tyres, and Knorr Bremse EBS braking. Lighting is sealed looms with Hella LED.
To enquire about the PTE 3 Axle Simple Trailer please call our email us.Specification
- 3A Simple Trailer 23T GVM
- 7.5T box leg landing gear
- Pintle eye towing connection (optional 50mm toweye)
- Ramps: 2.4m long x 950mm wide
- Hydraulic supply from truck
- Toolbox in drawbar
Optional add-ons:
- 20ft container locks,
- petrol/electric powerpack
- Wabco brakes
- Wide ramps
- Rope rails
- Hydraulic landing leg

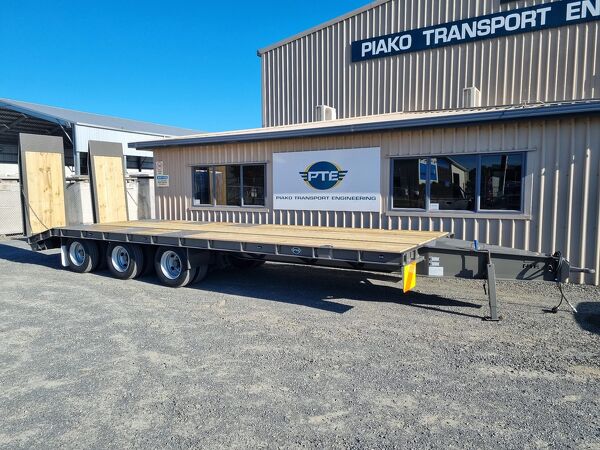

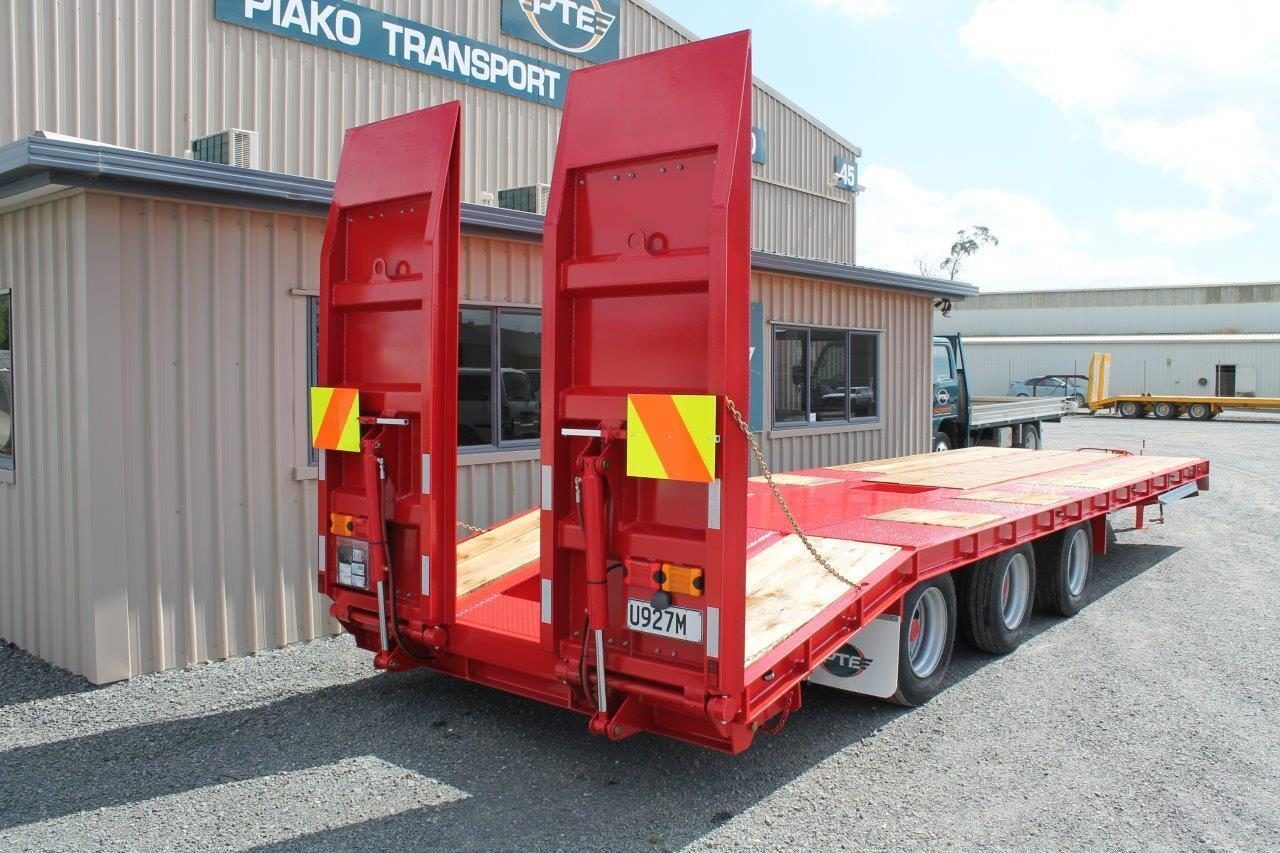

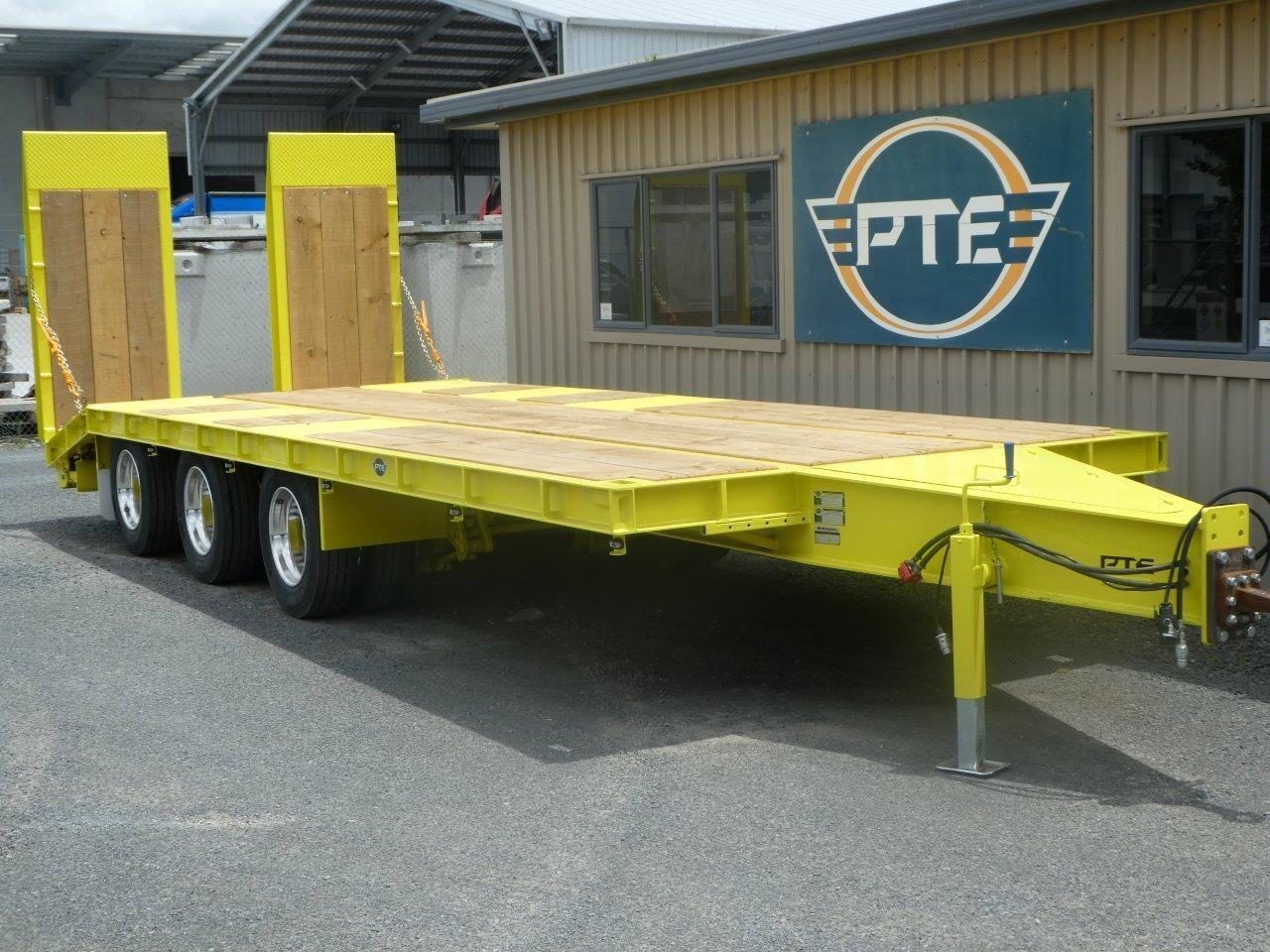

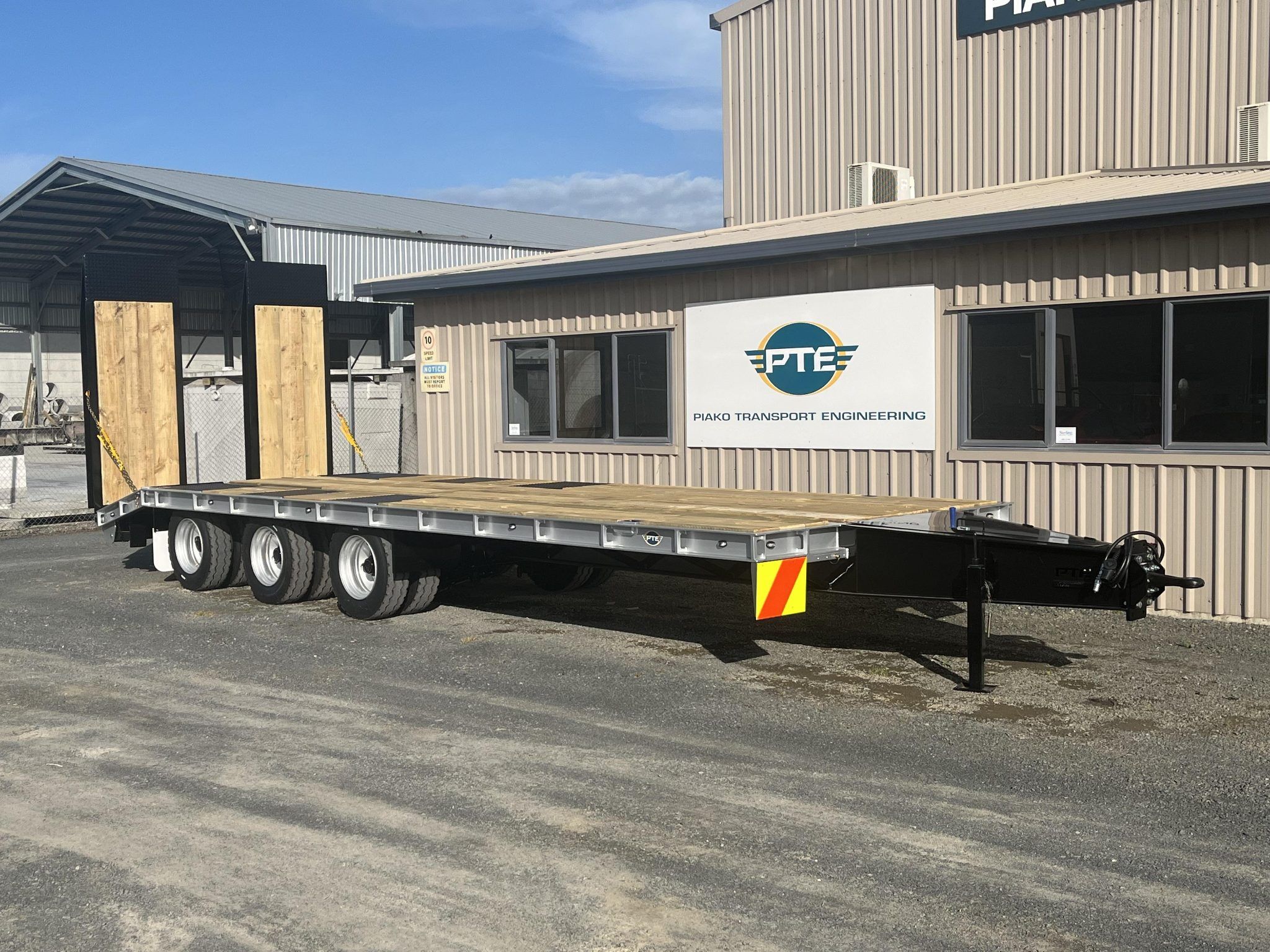

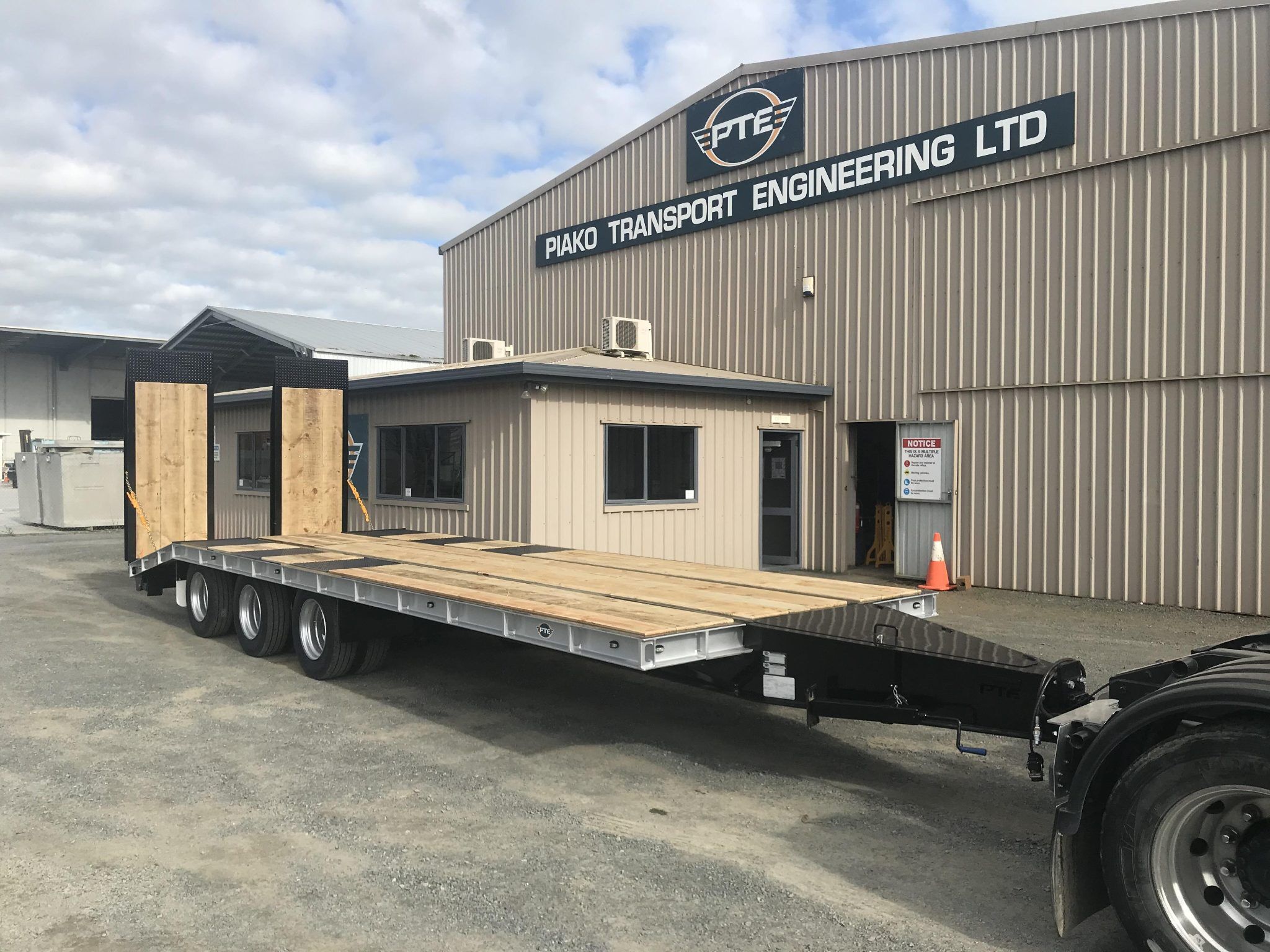

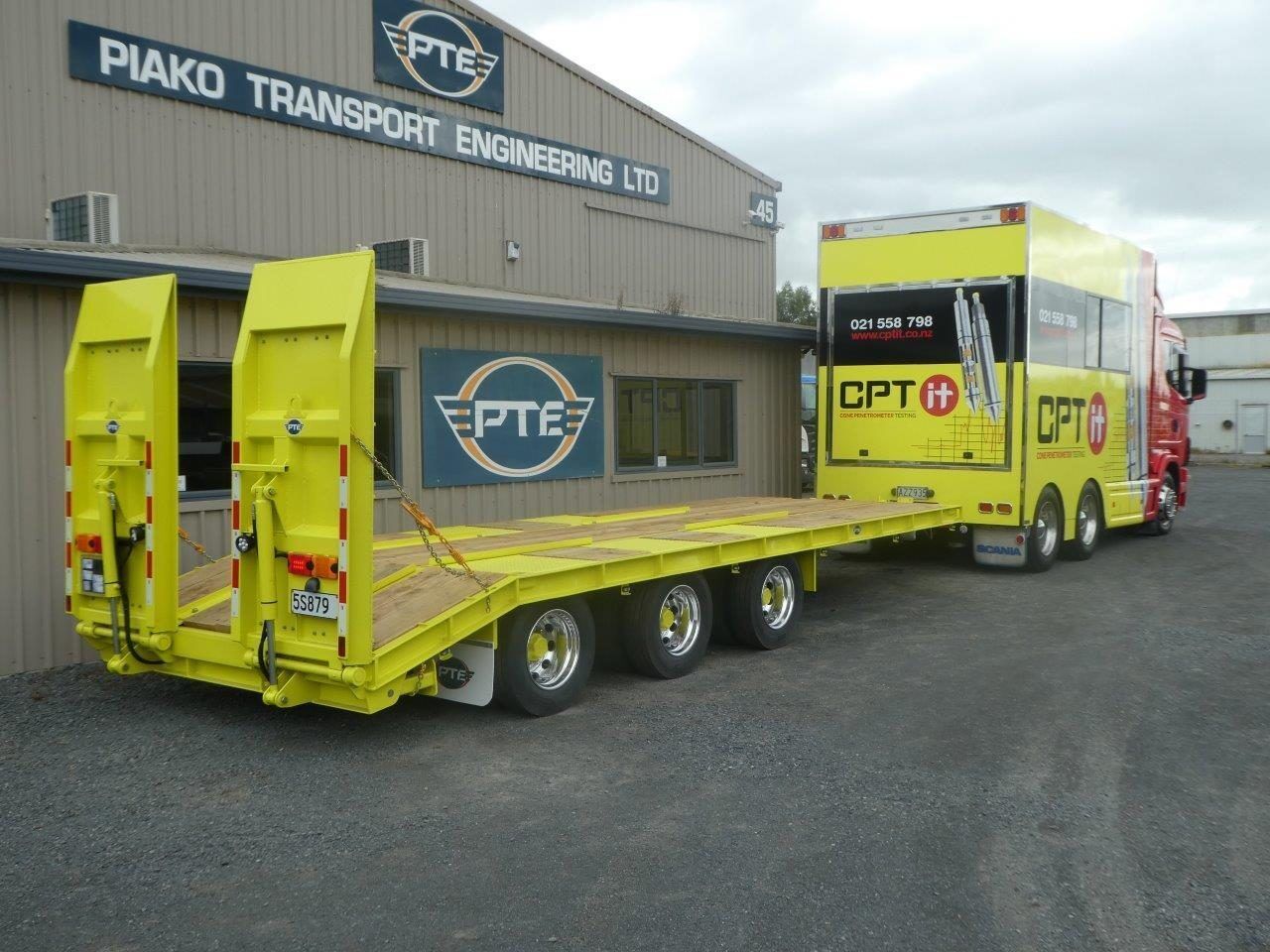

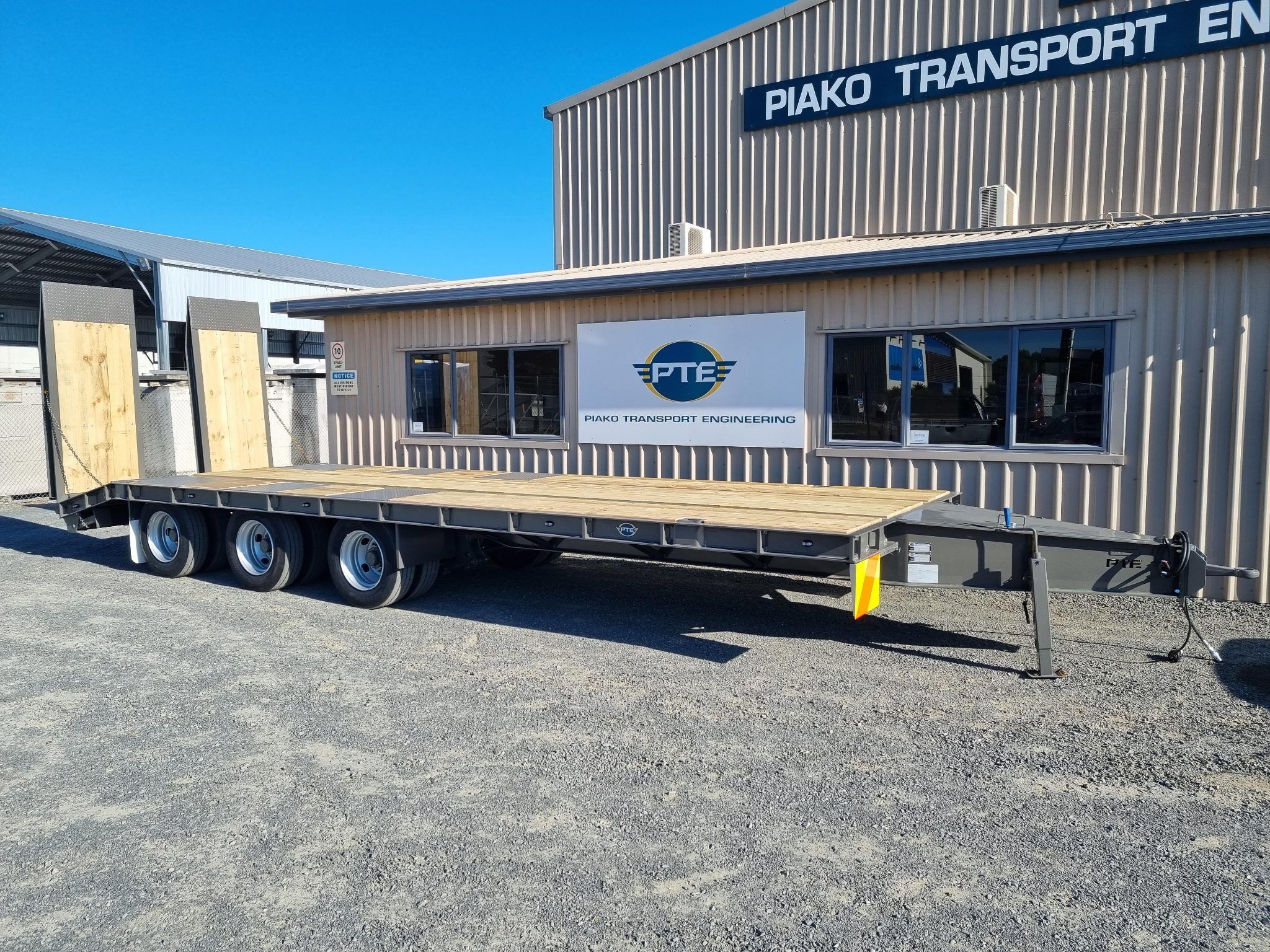

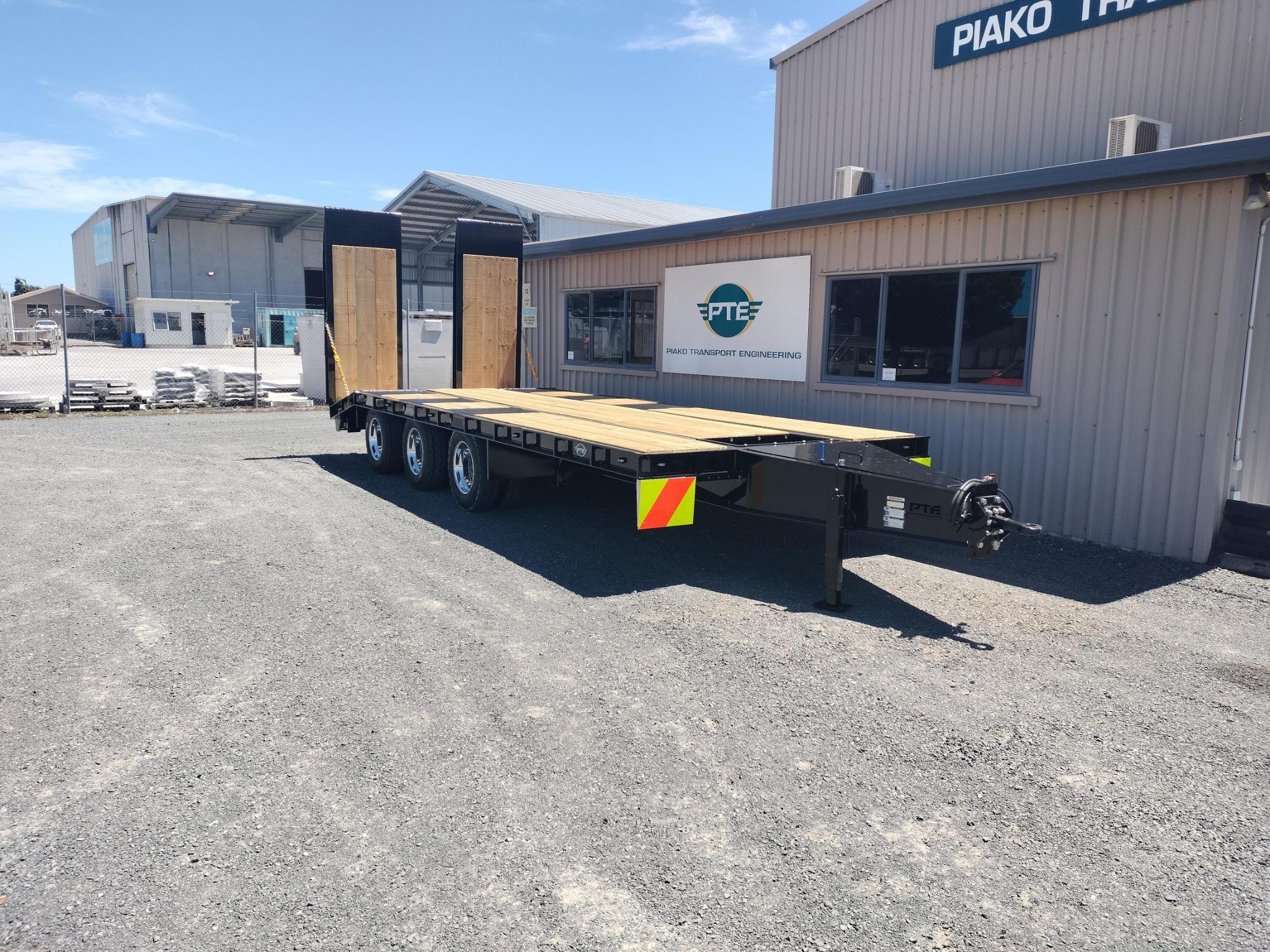

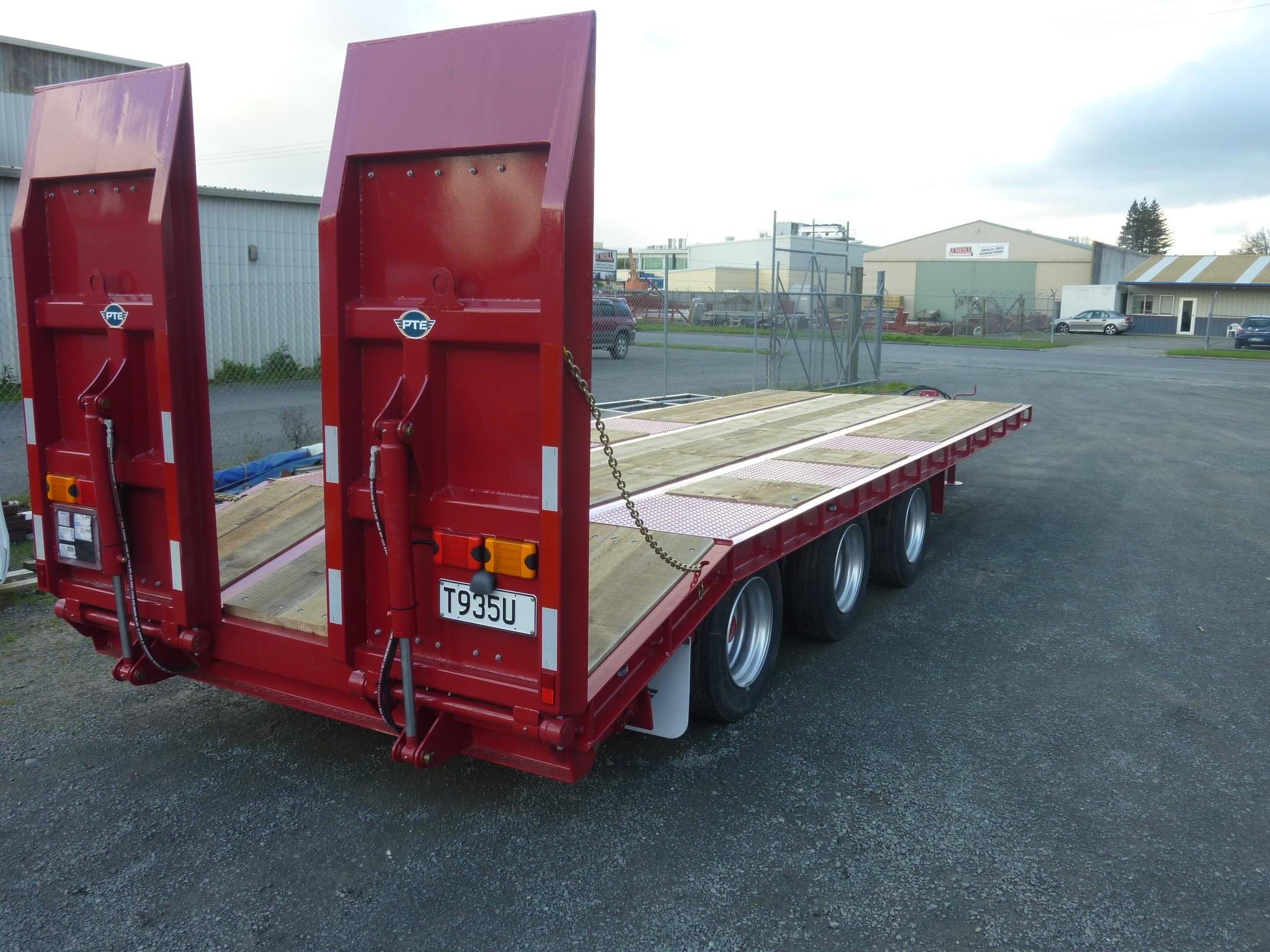

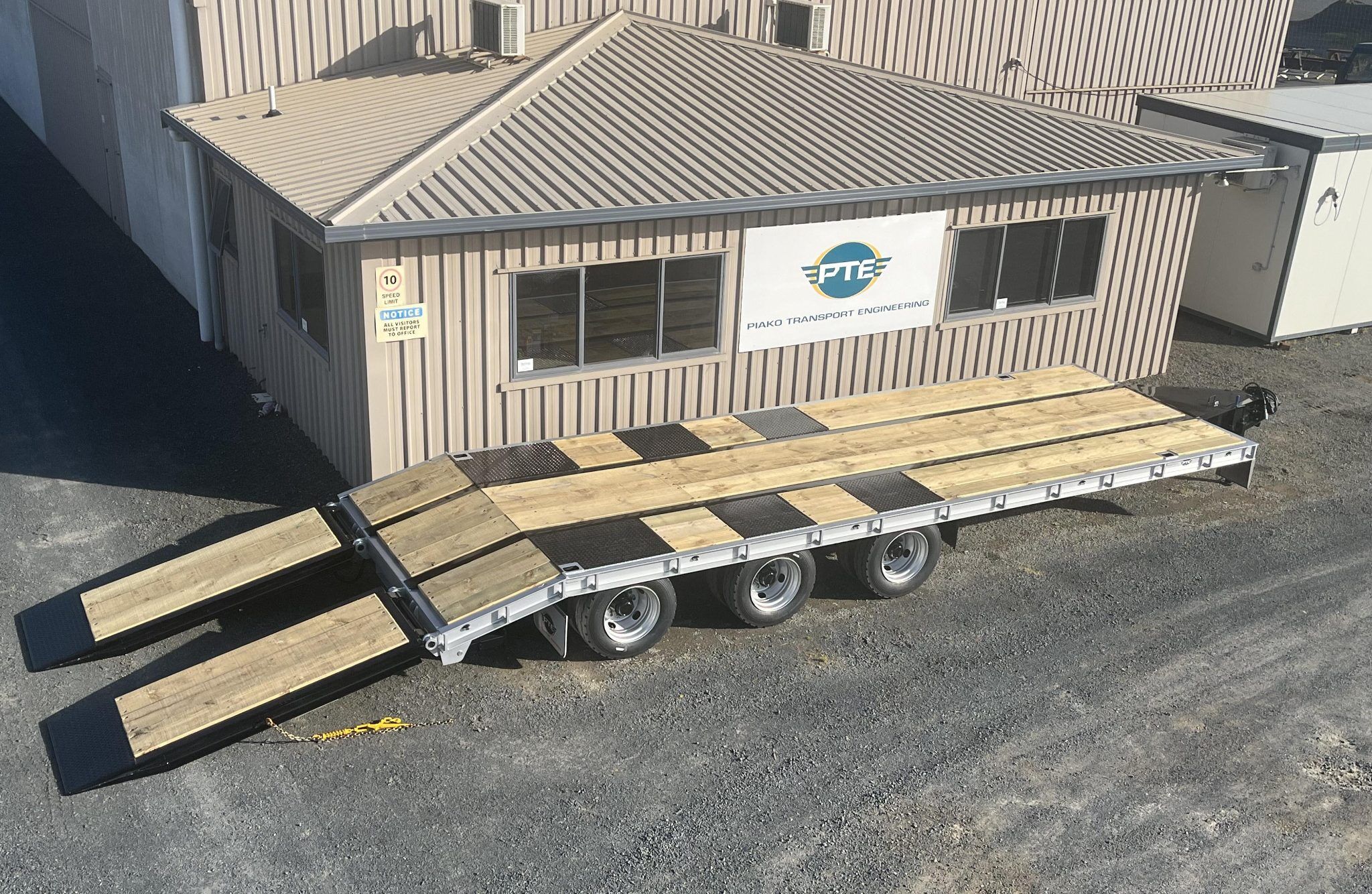

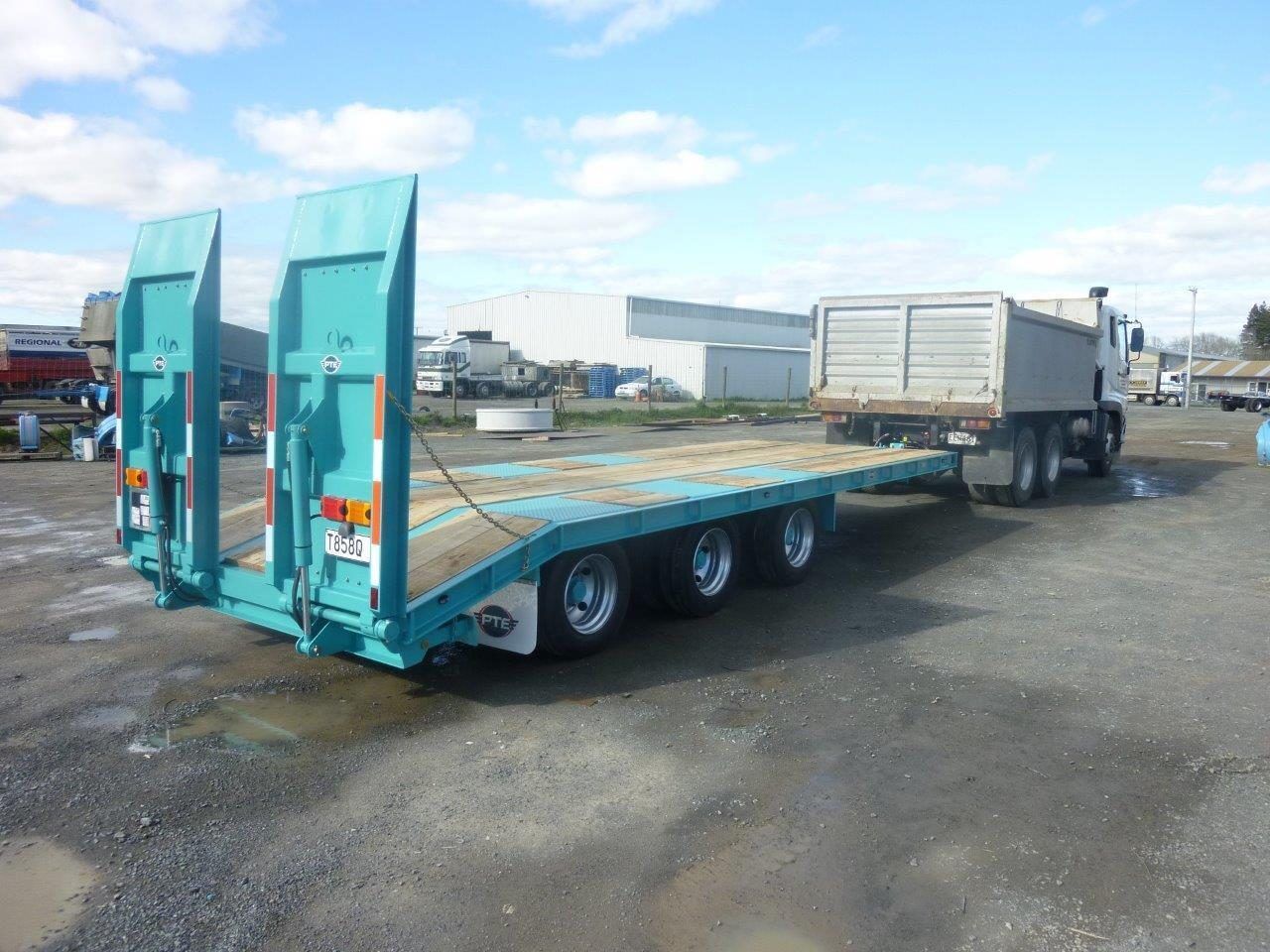

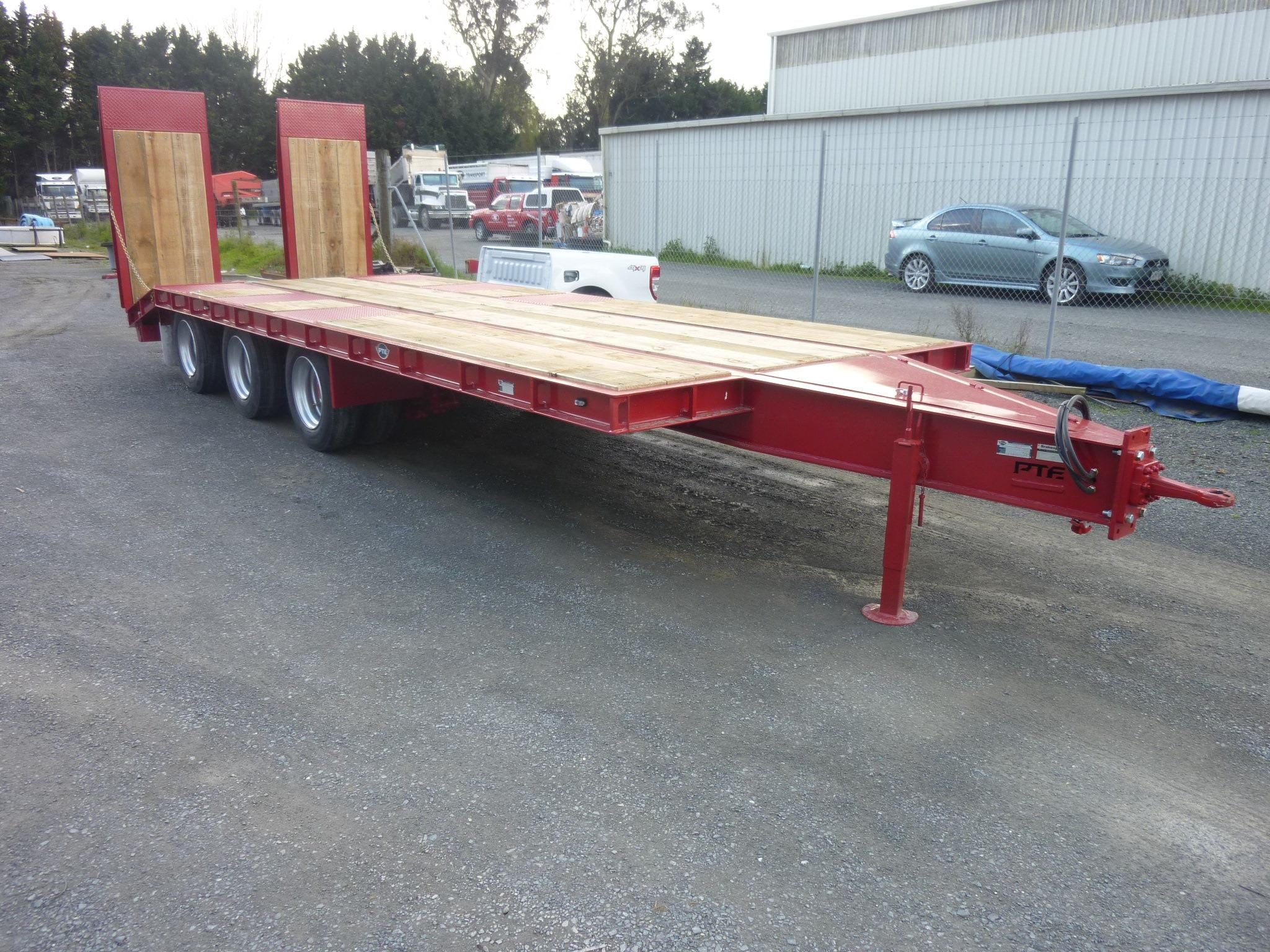

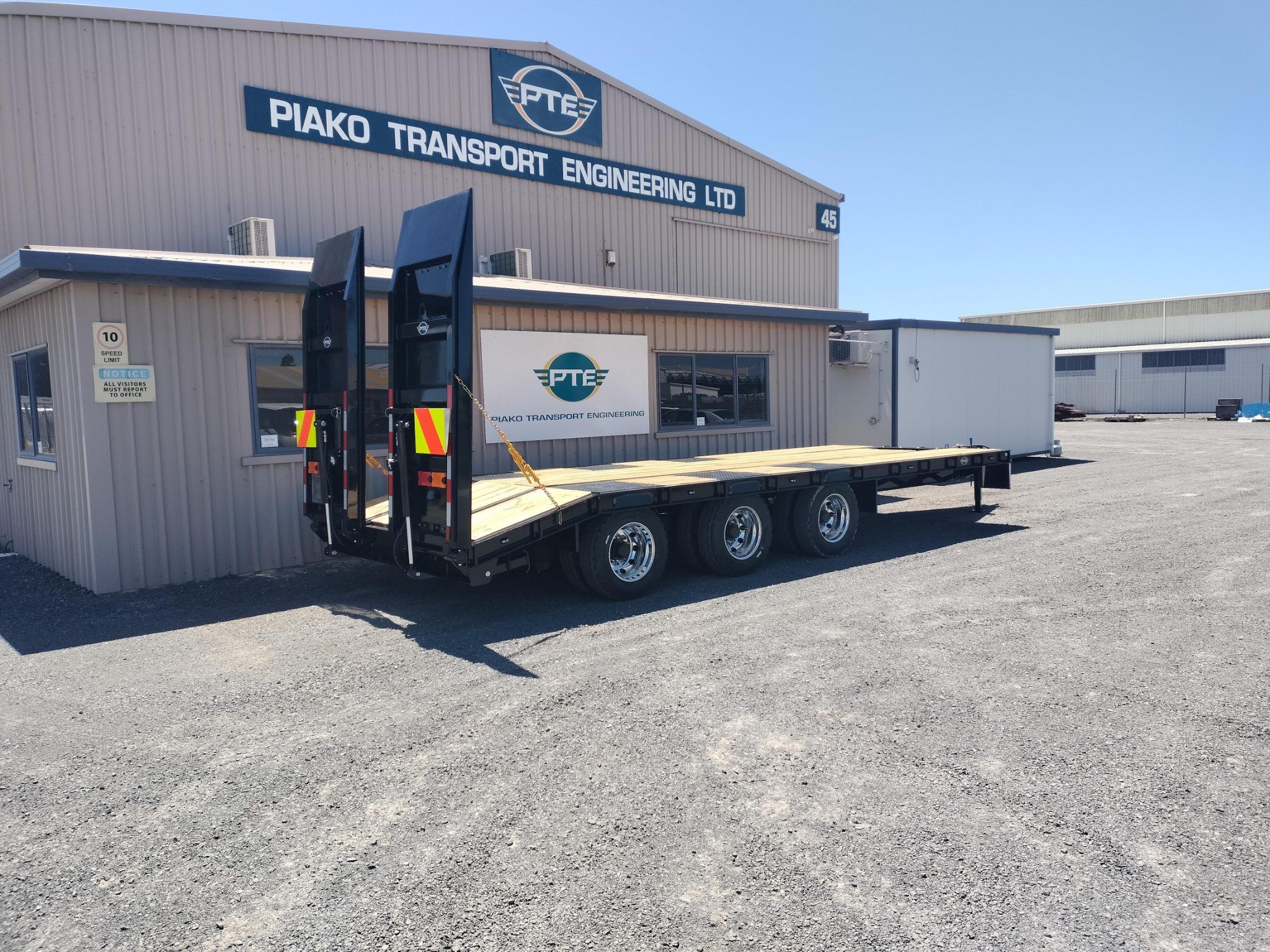

Please note: Photos shown are examples of similar trailers weve built and may not represent the exact unit currently available. Get in touch to find out whats in stock or to request current photos were happy to talk through the options with you.
The PTE Point of Difference:
35+ years of experience in designing and building low loader transport trailers
Proven performance in tough, demanding conditions
In-house design and LT400 certification
Quality workmanship and components backed by a 24-month build warranty
