Description
A text description of the key advantages and features of the trailer goes here. Focus on the Benefits of operation to the company using the Trailor. A text description of the key advantages and features of the trailer goes here. Focus on the Benefits of operation to the company using the Trailor. A text description of the key advantages and features of the trailer goes here. Focus on the Benefits of operation to the company using the Trailor. A text description of the key advantages and features of the trailer goes here. Focus on the Benefits of operation to the company using the Trailor.
To enquire about the PTE 4 Axle Full Low Loader Trailer please call our email us.Specification
- Overall length: 11500
- Main deck length: 5300
- Top deck length: 2900
- Main Deck height: 915
- Top Deck height: 1035
- Rear Overhang: 2400
- Beavertail: 875
- Tare approx.: 7200 kg
- Max Gross laden weight: 30000 kg
- Axles: 4 x ROR Meritor 15 10 stud, drum brake, lowloader.
- Suspension: 4 x Weweller Air Suspension c/w dump valve
- Wheels: 16 of 6.00 x 17.50 10 polished aluminum wheels
- Tyres: 16 of 215/75R17.5 tubeless Kiwi 17s

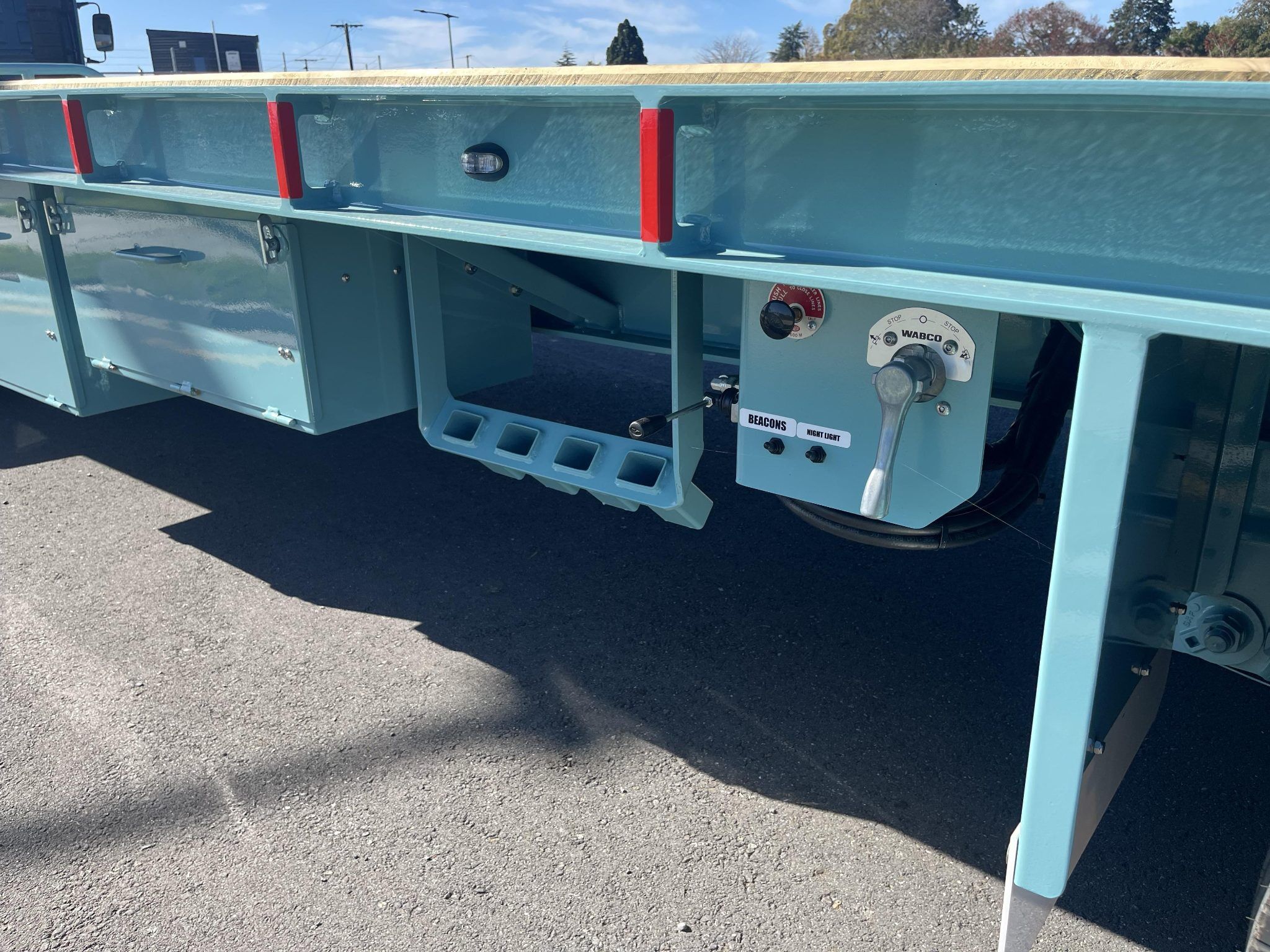

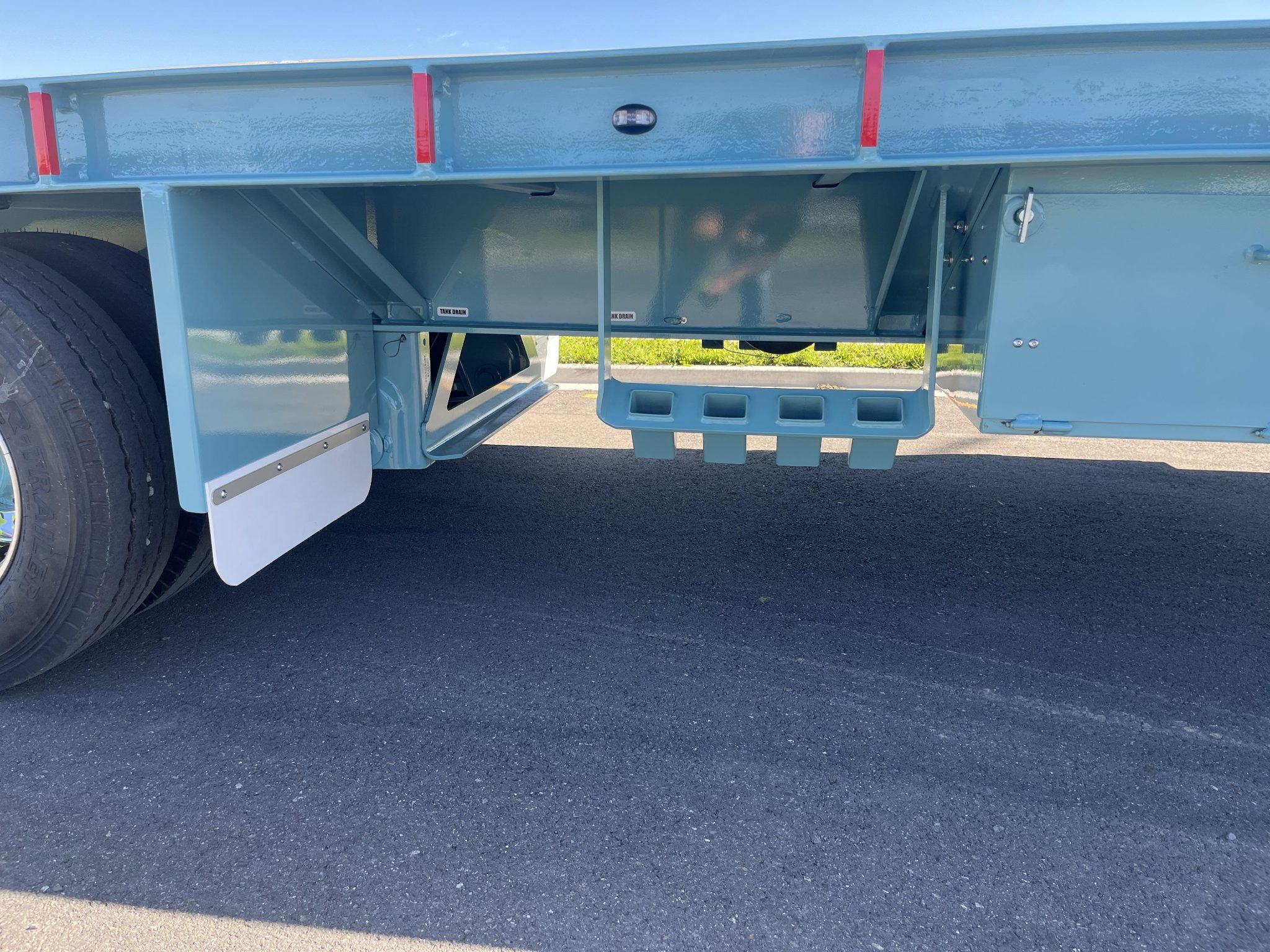

- Toolbox: 2 x Steel, under deck both sides + x2 chain trays in front
- Drawbar: A Frame, weld in 50mm toweye
- Brakes: Multi volt EBS, Knorr Bremse brand
- Load Anchors: 17 per side Rated at 8000 kg
- Paint: Blasted, primed, painted 2 colours 2K
- Lights: LED rear and side markers, over width panels with marker lights
- On Road: Registration, C.O.F, Hubodometer, R.U.C.1000km
- Deck: 50mm pine, coach bolted, bow rail at front coaming
- Beaver tail: 12 degrees

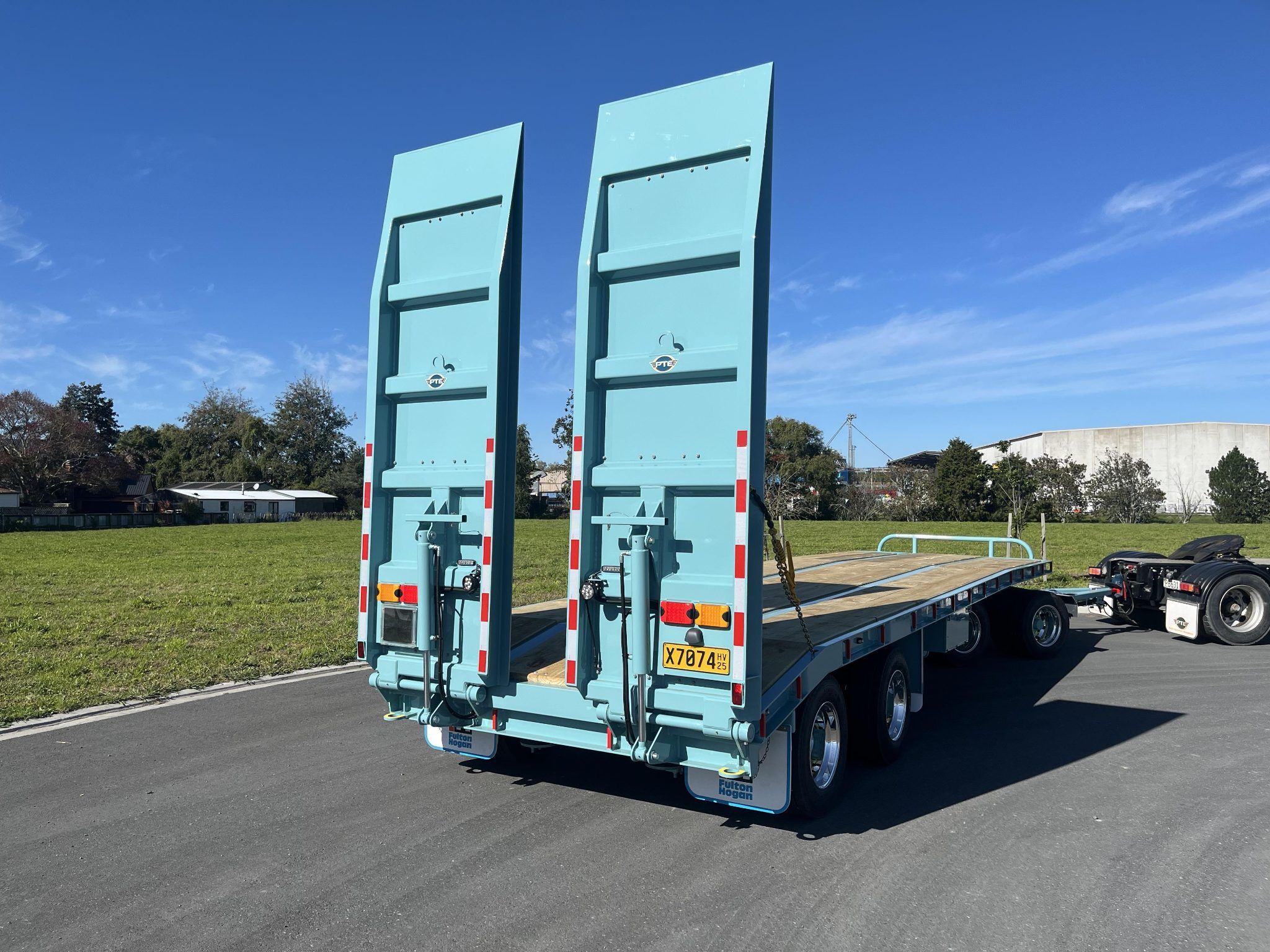

- Ramps: 3.2 long x 1000mm wide, hydraulic from truck, single acting
